Compact Electric Mist Collector

EM-8e Breaks all current limits on mist collectors "Zero Filter Waste" and "No Clogged Filters" Electronic trapping method keeps filter costs at zero. This means big savings. An added bonus is that its low load operation is environmentally friendly. Mist Preprocessor One type handles both water-soluble and oil-based mist Trapping efficiency greater than 99% Little vibration and low noise level of 65±2dB(A) or less. Uses tungsten needle electrodes.

Specifications EM-8e

Power(Volts/Hertz)			200 volt 3-phase on both 50/60Hz(*1)
Output(kW)			0.2
Maximum blow force (m3/min)		50Hz	6.2
		60Hz	7.5
Maximum static Pressure (kPa) (=blow force at using point)		50Hz	0.35
		60Hz	0.55
Noise level(dB[A])			65 ±2 or less
Primary metal filter			SUS mesh(reusable after washing)
Elwctrical collector (electrode)	Charge application method		Positive charge application method
	Charging electrode		Needle electrodes
	High voltage output section	Voltage application(kV)	10
		Electrical current(mA)	2.0
	Power consumpution(W)		40
Trapping efficiency	Specific gravity(%)		99(Specific gravity per filter paper)
	Maximum inlet concentration(mg/m3)		~50
Max. intake temperature(Cº)			40
Ozone concentration(ppm)			0.02 or less
Power cord(meters)			3.5(no plug)
Fan			scirocco fan
Intake size(mm)			dia. 148 (Variable in 2 directions)
Oil drain outlet			16mm dia. with no screw ridges (for insertion into 15mm inner diameter hose)
Standard accesory items			Oil drainage hose (15mm inner diameter×5meters) hose clamps,power cord,
Safety equipment(*2)			Microswitches (for sensing opening/closing of inspection door)
			High voltage output regulating mechanism
			Spark breaking circuit
			High voltage shutdown breakers(PWM control)
			High voltage delay startup function
Size W×D×H(mm)			474× 514× 570
Weight(kilograms)			45
Paint color			JPMA(main unit Y25-90,doorU77-60L)

*1 Step-down transformer (sold separately) is required for machines using 220 volt power supplies.
*2 Inspaction light lights up when inspectoin or washing of the electrodes is needed.



Compact Water-Soluble Mist Collector

MC-5 Light-weight and compact designed Water-Soluble Mist Collector ideally suited for machine tools.

Mist can cause extremely detrimental effects, such as physical disorders due to mistinhalation, accidents caused by mist scattering on the floor, or mechanical trouble due to mist entering into machine tool control units.
MC-5 compact water-soluble mist collector features powerful suction and a high
collecting efficiency, alleviating such problems and creating a clean and healthy
working environment.









Specifications MC-5

Power Source	Three-phase 50/60Hz
Output(kW)	0.55
Capacity(m3/min)	4/4.8 (For operation at 50Hz / 60Hz respectively)
Collectable Mist	Mist produced by water-solube cutting fluids
Allowable Intake Air Temparature	50Cº or lower
Size W×L×H (mm)	395 × 510 × 449
Weight(kg)	20
Noise(dB(A))	70 ± 2
Collecting Efficiency	99.97% (Actual measured data for2µm particles)
Inlet Port Diameter(mm)	ø 125
Drain Port Diameter(mm)	ø 25
Optional Equipment	Second Filter(Adsorbing filter) Control Box(with Magnet Switch)

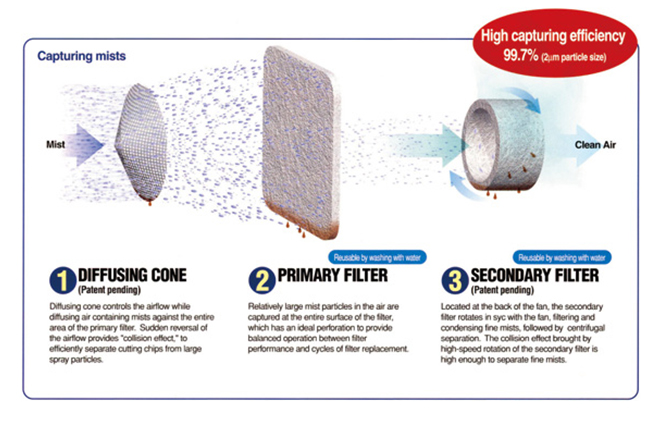

Filter Type Compact Electric Mist Collector

Energy-saving Smaller energy yet the same airflow as does a higher power model



THE MORE YOU USE MISTERIA – THE MORE YOU SAVE!

• Powerful just with a smaller motor in size (in-house comparison)
• Minimum consumables (in-house comparison)

ONE HANDED, ONE-MINUTE REPLACEMENT OF FILTERS

• Easy Maintenance, No Tools Needed
  (Even points located higher on the unit such as the top machine section can be serviced.)



Specifications MISTERIA

Model		MZ-10	MZ-15	MZ-30
Power (Volts, Hertz)		200 volt 3-phase on both 50/60Hz (220 volt 3-Phase Power can only use 60Hz)
Out Put(kW)		0.4	0.75	1.5
Maximum capacity(m3/min)	50Hz	8.3	10.5	20 (Inverter control)
	60Hz	10	13
Maximum static pressure(kPa)	50Hz	0.9	1.0	1.8
	60Hz	1.3	1.4
Noise (dB[A])		72± 2
Primary filter		Polyester (1sheet)
Secondary filter		Polyester (1sheet)
Collecting efficiency		99.7% (soluble oil mist of 2µm or larger)
Collecting mist		Water soluble mists (use the optional after-filter for oil mists)
Suction temperature		Max. intake temperature 75Cº (Temperature around the motor should not exceed 40Cº)
Power cord		Option(4-core)
Suction inlet diameter(mm)		ø123	ø148	ø198
Oil drain		16mm dia.(two locations), no threads (with hose inserted)
standard accessories		Antivibration rubber 4 pieces spare filters 2 sets (two each of primary and secondary filters) oil drainage hose (5meters long and 15mm in diameter) 2 hose clamps
Size W×L×H (mm)		306 × 556 × 450	356 × 581 × 460	407 × 685 × 575
Weight (kg)		27	33	63
Paint color		JPMA J11-833 (main unit Y25-90A,exhaust box U77-60L)

* Listed are for standard units,and those may change,depending on custom requirements.



Oil Mist Collector

Highly concentrated mist particles are collected by consistent operation, which extends the maintenance cycle twice as much.

	EM-30e Moisture mist and oil mist from several different locations is powerfully sucked.
	EM-15e A light-weight compact oil mist collector ideal for 1-machine-1 collector setups.

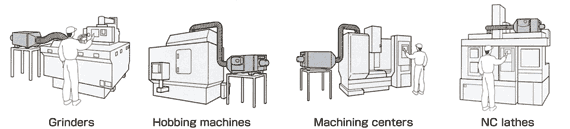

Applications

Specifications EM-30e/EM-15e

Model			EM-15e	EM-30e
Power (Volts*Hz)			3-phase 200V 50/60Hz
Output(kW)			0.75	1.5
Air capacity(m3/min) *		50Hz	15(20)	30(40)
		60Hz	15(24)	30(46)
Static Pressure(Pa) *		50Hz	350(550)	320(450)
		60Hz	600(750)	550(600)
Noise(dB[A])			72± 2
Prefilter		Material	Non-woven polyester fabric
		Dimensions(mm)	350 × 444 × 22	680 × 444 × 22
Electric collection part	Charging system		Positive(+) charge, 2-stage charging system
	Charging electrode type		Needle type
	High voltage output	HV	10
		LV	6
		Current(mA)	3.5	7
	Power consumption		90	180
Collecting efficiency	Relative weight ratio(%)		99 to 99.5 (Weight method * intake air intensity)
	Max, input density(mg/m3)		~200
Allowable suction air temperature			Max, 40Cº
Ozone density(p.p.m.)			Less than 0.02
Power cable(m)			3.5m(4-core,without plug)
Oil drainage port			G1(parallel female pipe threads : 1 inch)
Size W×D×H (mm)			482.5 × 1050 × 620	812.5 × 1132 × 620
Mass(kg)			70	114
Paint color			JPIA J11-833

*Figures in the () show fully open air capacity and closed static pressure.
